Chapter Three
Chapter Three
Visual Basic
Database Objects
In the previous day's lesson, you learned how to
create simple data entry forms using some of the data-bound controls and the various data
field types. Today you learn about the programmatic data objects of Visual Basic 5.0. Data
objects are used within a Visual Basic program to manipulate databases, as well as the
data tables and indexes within the database. The data objects are the representations (in
program code) of the physical database, data tables, fields, indexes, and so on.
Throughout today's lesson, you create small Visual Basic programs that illustrate the
special features of each data object.
Every Visual Basic program that accesses data tables
uses data objects. Even if you are only using the data-aware controls (for example, the
data control and bound input controls) and are not writing programming code, you are still
using Visual Basic data objects.
The primary data object used in Visual Basic
programs is the Recordset object. This is the object that holds the collection of data
records used in your Visual Basic programs. There are three different types of Recordset
objects. They are
- Dynaset-type Recordset object
- Table-type Recordset object
- Snapshot-type Recordset object
Any one of these Recordset objects can be used to
gain access to an existing data table in a database. However, they each have unique
properties and behave differently at times. Today you learn how these three types of
Recordset data objects differ and when it is best to use these objects in your programs.
NOTE: In previous versions of Visual Basic,
the Recordset object types were available as unique data objects (Dynaset, Table, and
Snapshot). These objects can still be used when working with the older (version 2.5) data
access object model, but it is not recommended. All data access object models now support
the Recordset object types and that is the object you should use in all new Visual Basic
programs.
You also learn about another data object today: the
Database object. You can use the Database object to get information about the connected
database. In this lesson, you learn about the general properties and behaviors of the
Database object of the data control and how you can use them in your programs.
NOTE: You learn more about the Database
object in Day 9 "Visual Basic and the Microsoft Jet Engine."
Dataset-Oriented
Versus Data Record-Oriented
Before you learn about Visual Basic data objects,
you should first learn some basics of how Visual Basic operates on databases in general.
When you understand how Visual Basic looks at databases, you can better create programs
that meet your needs.
The database model behind the Microsoft Access
database and other SQL-oriented databases is quite different from the database model
behind traditional PC databases such as FoxPro, dBASE, and Paradox. Traditional PC
databases are record-oriented database systems. Structured Query Language (SQL) databases
are dataset-oriented systems. Understanding the difference between record-oriented
processing and dataset-oriented processing is the key to understanding how to optimize
database programs in Visual Basic.
In record-oriented systems, you perform database
operations one record at a time. The most common programming construct in record-oriented
systems is the loop. The following pseudocode example shows how to increase the price
field of an inventory table in a record-oriented database:
ReadLoop:
If EndOf File
Goto EndLoop
Else
Read Record
If Record.SalesRegion = `Northeast' Then
Price=Price*1.10
Write Record
End If
EndIf
Goto ReadLoop
EndLoop:
End Program |
Processing in record-oriented systems usually
involves creating a routine that reads a single data record, processes it, and returns to
read another record until the job is completed. PC databases use indexes to speed the
process of locating records in data tables. Indexes also help speed processing by allowing
PC databases to access the data in sorted order (by LastName, by AccountBalance, and so
on).
In data-oriented systems, such as Microsoft Access,
you perform database operations one set at a time, not one record at a time. The most
common programming construct in set-oriented systems is the SQL statement. Instead of
using program code to loop through single records, SQL databases can perform operations on
entire tables from just one SQL statement. The following pseudocode example shows how you
would update the price field in the same inventory file in a dataset-oriented database:
UPDATE Inventory SET Price=Price*1.10
WHERE Inventory.SalesRegion = `Northeast' |
The UPDATE SQL command behaves with SQL
databases much like keywords behave with your Visual Basic programs. In this case, UPDATE
tells the database that it wants to update an entire table (the Inventory table). The SET
SQL command changes the value of a data field (in this case, the Price data field). The WHERE
command is used to perform a logical comparison of the SalesRegion field to the value Northeast.
As you can see, in dataset-oriented databases, you create a single statement that selects
only the records you need to perform a database operation. After you identify the dataset,
you apply the operation to all records in the set. In dataset systems, indexes are used to
maintain database integrity more than to speed the location of specific records.
Visual Basic
and Data Objects
Visual Basic database objects are dataset-oriented.
Visual Basic programs generally perform better when data operations are done with a
dataset than when data operations are done on single records. Some Visual Basic objects
work well when performing record-oriented operations; most do not. The Visual Basic
table-type Recordset object is very good at performing record-oriented processing. The
Visual Basic Dynaset- and snapshot-type Recordset objects do not perform well on
record-oriented processes.
A common mistake made by database programmers new to
Visual Basic is to create programs that assume a record-oriented database model. These
programmers are usually frustrated by Visual Basic's slow performance on large data tables
and its slow response time when attempting to locate a specific record. Visual Basic's
sluggishness is usually due to improper use of Visual Basic data objects--most often
because programmers are opening entire data tables when they only need a small subset of
the data in order to perform the required tasks.
Dataset Size
Affects Program Performance
Unlike record-oriented systems, the size of the
dataset you create affects the speed at which Visual Basic programs operate. As a data
table grows, your program's processing speed can deteriorate. In heavily
transaction-oriented applications, such as accounting systems, a dataset can grow quickly
and cripple your application's ability to process information. If you are working in a
network environment where the machine requesting data and the machine storing the data are
separated, sending large datasets over the wire can affect not only your application, but
all applications running on the network. For this reason, it is important to keep the size
of the datasets as small as possible. This does not mean you have to limit the number of
records in your data tables! You can use Visual Basic data objects to select the data you
need from the table instead.
For example, you might have a data table that
contains thousands of accounting transactions. If you want to modify the payment records
in the data table, you can create a data object that contains all of the records (quite a
big set), or you can tell Visual Basic to select only the payment records (a smaller set).
Or, if you know that you only need to modify payment records that have been added to the
system in the last three days, you can create an even smaller dataset: The smaller the
dataset, the faster your program can process the data. Visual Basic data objects give you
the power to create datasets that are the proper size for your needs.
The
Dynaset-Type Recordset Data Object
The Visual Basic Dynaset-type Recordset data object
is the most frequently used data object in Visual Basic programs. It is used to
dynamically gain access to part or all of an existing data table in a database, hence the
name Dynaset. When you set the DatabaseName and RecordSource properties of a Visual Basic
data control, you are actually creating a Visual Basic Dynaset-type Recordset. You can
also create a Dynaset-type Recordset by using the CreateDynaset method of the
Database object.
When you create a Visual Basic Dynaset-type
Recordset, you do not create a new physical table in the database. A Dynaset exists as a
virtual data table. This virtual table usually contains a subset of the records in a real
data table, but it can contain the complete set. Because creating a Dynaset does not
create a new physical table, Dynasets do not add to the size of the database. However,
creating Dynasets does take up space in RAM on the machine that creates the set (the one
that is running the program). Depending on the number of records in the Dynaset, temporary
disk space can also be used on the machine requesting the dataset.
Strengths of
the Dynaset-Type Recordset Object
There are several reasons to use Dynasets when you
access data. In general, Dynasets require less memory than other data objects and provide
the most update options, including the capability to create additional data objects from
existing Dynasets. Dynasets are the default data objects for the Visual Basic data
control, and they are the only updatable data object you can use for databases connected
through Microsoft's Open Database Connectivity (ODBC) model. The following sections
provide more details of the strengths of the Dynaset data object. Dynasets Are Really Key
Sets Visual Basic Dynasets use relatively little workstation memory, even for large
datasets. When you create a Dynaset, Visual Basic performs several steps. First, Visual
Basic selects the records you requested. Then, it creates temporary index keys to each of
these records and sends the complete set of keys to your workstation along with enough
records to fill out any bound controls (text boxes and/or grid controls) that appear on
your on-screen form. This process is illustrated in Figure 3.1.
Figure 3.1. Dynasets
contain key sets that point to the actual data.
NOTE: The actual data request engine used by
Visual Basic is called the Microsoft Jet data engine. In pure SQL systems, all requests
for data result in a set of data records. Data requests to the Microsoft Jet engine result
in a set of keys that point to the data records. By returning keys instead of data
records, Microsoft Jet engine is able to limit network traffic and speed database
performance.
The set of keys is stored in RAM and--if the set is
too large to store in RAM alone--in a temporary file on a local disk drive. As you scroll
through the dataset, Visual Basic retrieves actual records as needed from the physical
table used to create the Dynaset. If you have a single text box on the form, Visual Basic
retrieves the data from the table one record at a time. If you have a grid of data or a
loop that collects several records from the table in succession, a small set of the
records in the dataset is retrieved by Visual Basic. Visual Basic also caches records at
the workstation to reduce requests to the physical data table, which speeds performance.
If the Dynaset is very large, you might end up with
a key set so large that it requires more RAM and temporary disk space than the local
machine can handle. In that case, you receive an error message from Visual Basic. For this
reason, it is important that you use care in creating your criteria for populating the
dataset. The smaller the dataset, the smaller the key set. Dynasets Are Dynamic Even
though Dynasets are virtual tables in memory created from physical tables, they are not
static copies of the data table. After you create a Dynaset, if anyone else alters the
underlying data table by modifying, adding, or deleting records, you see the changes in
your Dynaset as soon as you refresh the Dynaset. Refreshing the Dynaset can be done using
the Refresh method. You can also refresh the Dynasets by moving the record
pointer using the arrow keys of the data control or using the MoveFirst, MoveNext,
MovePrevious, and MoveLast methods. Moving the pointer refreshes only
the records you read, not the entire Dynaset.
Although the dynamic aspect of Dynasets is very
effective in maintaining up-to-date views of the underlying data table, Dynasets also have
some limitations and drawbacks. For example, if another user deletes a record that you
currently have in your Dynaset and you attempt to move to that record, Visual Basic
reports an error. Dynasets Can Be Created from More than One Table A Dynaset can be
created using more than one table in the database. You can create a single view that
contains selected records from several tables, update the view, and therefore update all
the underlying tables of the data at one time. This is a very powerful aspect of a Visual
Basic Dynaset data object. Using Visual Basic Dynasets, you can create virtual tables that
make it easy to create simple data entry screens and display graphs and reports that show
specialized selections of data. Use Dynasets to Create Other Dynasets or Snapshots Often
in Visual Basic programs, you need to create a secondary dataset based on user input. The
Dynaset data object is the only data object from which you can create another Dynaset.
You can create additional Dynasets by using the Clone
method or the CreateDynaset method. When you clone a Dynaset, you create an exact
duplicate of the Dynaset. You can use this duplicate to perform look-ups or to reorder the
records for a display. Cloned Dynasets take up slightly less room than the original
Dynaset.
Let's put together a short code sample that explores
Dynasets. You do this all in Visual Basic code, too, instead of using the Visual Basic
data control.
First start a new Visual Basic 5.0 Standard EXE
project. Be sure to add a reference to the Microsoft DAO 3.5 Object Library before you
begin coding. To do this, Select Project | References from the Main menu (see Figure 3.2).
Figure 3.2. Adding the
Microsoft DAO 3.5 Reference to a Visual Basic Project.
Now double-click the form to open the code window to the Form_Load event. You
write the entire example in this procedure.
When you open a Dynaset using Visual Basic code
instead of using the data control, you must create two Visual Basic objects: a Database
object and a Recordset object. Listing 3.1 shows how you create the objects in Visual
Basic code.
Listing 3.1.
Creating a Database object and a Recordset object.
Private Sub Form_Load()
`
` creating Dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
`
End Sub |
You must initialize these objects with values before they can access data. This process is
similar to setting the properties of the data control. To initialize the values, you first
create two variables that correspond to the DatabaseName and RecordSource properties of
the Visual Basic data control. The code sample in Listing 3.2 shows how it is done.
TIP: The code sample in Listing 3.2 uses the App.Path
Visual Basic keywords. You can use the Path method of the App object to determine
the drive letter and directory from which the program was launched. In most projects
throughout this guide, you find the databases are stored in the same directory as the
sample projects. By using the App.Path method as part of the database name, you
always point to the correct drive and directory for the required file.
Listing 3.2.
Declaring database and data table variables.
Private Sub Form_Load()
`
` creating Dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
`
` create local variables
Dim strDBName As String
Dim strRSName As String
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
`
End Sub |
TIP: Notice that you created two string
variables, and both variable names start with the letters "str", which stand for
string type. This is the prefix of the variable name. The prefix of the name tells you
what type of data is stored in the variable. This is common programming practice. Adhering
to a strict naming convention makes it easier to read and maintain your programs.
Before you continue with the chapter, save this form
as DYNASETS.FRM and save the project as DYNASETS.VBP.
Now that you have created the data objects, created
variables to hold database properties, and initialized those variables with the proper
values, you are ready to actually open the database and create the Dynaset-type Recordset.
The code in Listing 3.3 shows how to do this using Visual Basic code.
Listing 3.3.
Opening the database and creating the Dynaset.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
`
` create local variables
Dim strDBName As String
Dim strRSName As String
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
End Sub |
There are two added lines in Listing 3.3. The first added line opens the guideS5.MDB
database and sets the Visual Basic database object db to point to the database. This gives
your Visual Basic program a direct link to the selected database.
TIP: Note that this database object was
created using the OpenDatabase method of the DBEngine object. The
DBEngine is covered in greater detail on Day 9.
Now you can use the db data object to represent the
open database in all other Visual Basic code in this program. The second line creates a
Dynaset-type Recordset object that contains all the records in the Titles table. The
Visual Basic rs object is set to point to this set of records. Notice that the OpenRecordset
method is applied to the db Database object.
TIP: Notice that these last two lines of code
use the Set keyword. This Visual Basic keyword is used to initialize all
programming objects. You might think that you could perform the same task using the
following code line:
Rs = db.OpenRecordSet(strRSName,dbOpenRecordset)
However, this does not work. In Visual Basic, all
objects must be created using the Set keyword.
The code in Listing 3.3 is all that you need to open
an existing Microsoft Access database and create a Dynaset-type Recordset ready for
update. However, for this project, you want to see a bit more. Let's add some code that
tells you how many records are in the Titles data table.
You need one more variable to hold the record count.
You also use the MoveLast method to move the record pointer to the last record in
the Recordset. This forces Visual Basic to touch every record in the collection, and
therefore gives you an accurate count of the total number of records in the table. You get
the count by reading the RecordCount property of the Recordset. When you have all that,
you display a Visual Basic message box that tells you how many records are in the
Recordset. Listing 3.4 contains the code to add.
Listing 3.4.
Counting the records in a Dynaset.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
`
` create local variables
Dim strDBName As String
Dim strRSName As String
Dim intRecs As Integer
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
` count the records in the collection
rs.MoveLast ` move to end of list to force a count
intRecs = rs.RecordCount ` get count
MsgBox strRSName & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
End Sub |
Save the form (DYNASETS.FRM) and project (DYNASETS.VBP) again and run
the program. You see a message box telling you how many records are in the Recordset.
Figure 3.3 shows the results of a typical run.

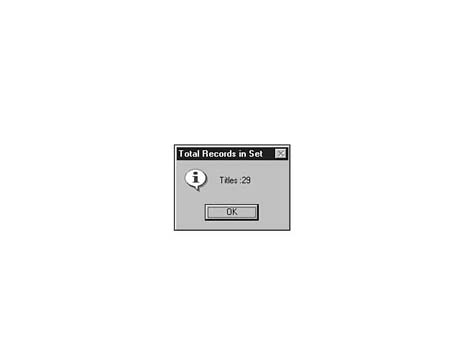

Figure 3.3. Displaying
the RecordCount of a Recordset.
You can use the OpenRecordset command on an existing Recordset to create a
smaller subset of the data. This is often done when the user is allowed to create a record
selection criterion. If the dataset returned is too large, the user is allowed to further
qualify the search by creating additional criteria to apply to the dataset.
Let's modify DYNASETS.VBP to create a
smaller Dynaset-type Recordset from the existing Recordset. You need to create a new
Recordset object and a new variable called strFilter to hold the criteria for selecting
records. The code in Listing 3.5 shows how to add the object and variable to the existing DYNASETS.VBP
project.
Listing 3.5.
Adding a new Recordset object and string variable.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
Dim rs2 As Recordset ` <<< add another recordset object
`
` create local variables
Dim strDBName As String
Dim strRSName As String
Dim intRecs As Integer
Dim strFilter As String ` <<< add filter
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
strFilter = "YearPub>1990" ` <<< set filter
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
` count the records in the collection
rs.MoveLast ` move to end of list to force a count
intRecs = rs.RecordCount ` get count
MsgBox strRSName & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
End Sub |
Now that you have the object and the variable (marked with <<< in
Listing 3.5), you can add code that creates a new Recordset. First you set the Filter
property of the existing Recordset using the variable you just created. Then you create
the new Recordset from the old one. See the last two lines of the code in Listing 3.6.
Listing 3.6.
Using the Filter property to create a Recordset.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
Dim rs2 As Recordset ` another recordset
`
` create local variables
Dim strDBName As String
Dim strRSName As String
Dim intRecs As Integer
Dim strFilter As String
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
strFilter = "YearPub>1990"
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
` count the records in the collection
rs.MoveLast ` move to end of list to force a count
intRecs = rs.RecordCount ` get count
MsgBox strRSName & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
` create filtered collection
rs.Filter = strFilter
Set rs2 = rs.OpenRecordset
`
End Sub |
Now that you've created the new Recordset from the old one, you can get a count of the
selected records. You can add the same code you used earlier: Move to the end of the
Recordset, get the RecordCount, and show it in a message box. Listing 3.7 shows the
completed program.
Listing 3.7.
Displaying the record count of the filtered Recordset.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
Dim rs2 As Recordset ` another recordset
Dim rs3 As Recordset ` for cloning
`
` create local variables
Dim strDBName As String
Dim strRSName As String
Dim intRecs As Integer
Dim strFilter As String
`
` initialize the variables
strDBName = App.Path & "\..\..\data\guides5.mdb"
strRSName = "Titles"
strFilter = "YearPub>1990"
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
` count the records in the collection
rs.MoveLast ` move to end of list to force a count
intRecs = rs.RecordCount ` get count
MsgBox strRSName & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
` create filtered collection
rs.Filter = strFilter
Set rs2 = rs.OpenRecordset
`
` count the records in the collection
rs2.MoveLast ` move to end of list to force a count
intRecs = rs2.RecordCount ` get count
MsgBox strFilter & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
` exit program
End
`
End Sub |
Save and run the code to check the results (see Figure 3.4). Notice that the first record
count (the full dataset) is larger than the second record count (the filtered dataset).

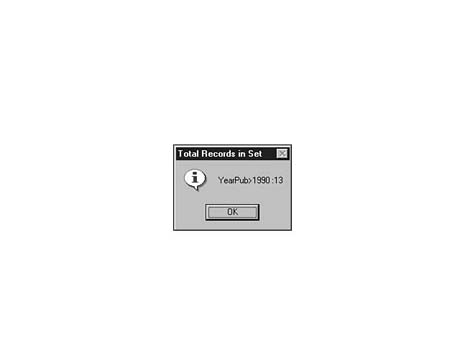

Figure 3.4. Display
RecordCount of the Filtered Recordset.
It is also important to notice that the second Recordset object was created from the first
Recordset object. This a very powerful feature of Visual Basic. When you want to get a
smaller dataset, you don't have to reload the data from the database; you can use an
existing Recordset as the source for a new dataset.
TIP: Creating subsets of a Recordset in this
manner can sometimes be slower than simply creating a new Recordset from the database
itself. The exception to this rule is when your database is stored at a distant server. In
cases where your source data is far away and possibly available only over a slow network
connection, using the Filter property to create subsets of data can be faster.
Now let's make one more series of changes to DYNASETS.VBP
that illustrate the Clone method for Recordsets. Cloning a Recordset makes a
duplicate of the set. Add another data object (rs3), and add the Clone Recordset
program code in Listing 3.8.
Listing 3.8.
Cloning a new Recordset.
Private Sub Form_Load()
`
` creating dynaset-type recordsets
`
Dim db As Database ` the database object
Dim rs As Recordset ` the recordset object
Dim rs2 As Recordset ` another recordset
Dim rs3 As Recordset ` for cloning
`
` create local variables
Dim strDBName As String
Dim strRSName As String
Dim intRecs As Integer
Dim strFilter As String
`
` initialize the variables
strDBName = App.Path & "\..\data\guides5.mdb"
strRSName = "Titles"
strFilter = "YearPub>1990"
`
` create the objects
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenDynaset)
`
` count the records in the collection
rs.MoveLast ` move to end of list to force a count
intRecs = rs.RecordCount ` get count
MsgBox strRSName & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
` create filtered collection
rs.Filter = strFilter
Set rs2 = rs.OpenRecordset
`
` count the records in the collection
rs2.MoveLast ` move to end of list to force a count
intRecs = rs2.RecordCount ` get count
MsgBox strFilter & " :" & CStr(intRecs), vbInformation, "Total
Records in Set"
`
` clone the recordset
Set rs3 = rs.Clone ` clone it
rs3.MoveLast ` move to end
intRecs = rs3.RecordCount ` get count
MsgBox "Cloned Recordset: " & CStr(intRecs), vbInformation, "Total
Records in Set"
`
End Sub |
Notice that all you have to do to clone a Recordset is to use the Clone method to
load a new Recordset object variable. When you run the program this time, you see that the
Recordset created using the Clone method contains the same number of records as
its parent. Dynasets Can Use guidemarks, Filters, and Sorts Dynaset-type Recordsets can use
the guidemark, Filter, and Sort properties to reorder data for display (Sort) or create a
subset of the Recordset (Filter). Using the Visual Basic Find method on a Recordset forces
Visual Basic to start at the first record in the collection and read each one until a
match is found. Once the selected record is found, your user may want to return to the
record that was displayed before the search began. That's what Visual Basic guidemarks do.
They remember where you were.
When you search for a record in the dataset using
one of the Find methods, you should set guidemarks before your search to remember where you
started. This is especially handy if your Find criteria results in a null record. When a FindFirst
method fails to locate the desired record, the record pointer is set to the first record
in the collection. If you have saved the guidemark before starting the search, you can
reset the Visual Basic guidemark and return the user to the place from which the search
started.
Let's build a quick project to demonstrate the use
of guidemarks. Use the information in Table 3.1 to create a small form with a data control,
two bound input controls, two label controls, and a single command button.
Table 3.1. Controls for
guideMARKS.FRM.
Control |
Property |
Setting |
VB.Form |
Name |
FrmguideMarks |
|
Caption |
"guidemark Demonstration" |
|
ClientHeight |
1320 |
|
ClientLeft |
60 |
|
ClientTop |
345 |
|
ClientWidth |
4605 |
|
StartUpPosition |
2 `CenterScreen |
VB.CommandButton |
Name |
CmdSaveguidemark |
|
Caption |
"&Save guidemark" |
|
Height |
300 |
|
Left |
2760 |
|
Top |
180 |
|
Width |
1695 |
VB.Data |
Name |
DtaguideMarks |
|
Align |
2 `Align Bottom |
|
Caption |
"Data1" |
|
Connect |
"Access" |
|
DatabaseName |
C:\TYSDBVB5\SOURCE\DATA\guideS5.MDB |
|
RecordsetType |
1 `Dynaset |
|
RecordSource |
"Authors" |
VB.TextBox |
Name |
TxtName |
|
DataField |
"Name" |
|
DataSource |
"dtaguideMarks" |
|
Height |
300 |
|
Left |
1440 |
|
Top |
600 |
|
Width |
3015 |
VB.TextBox |
Name |
TxtAUID |
|
DataField |
"AUID" |
|
DataSource |
"dtaguideMarks" |
|
Height |
300 |
|
Left |
1440 |
|
Top |
180 |
|
Width |
1215 |
VB.Label |
Name |
LblName |
|
BorderStyle |
1 `Fixed Single |
|
Caption |
"Author Name" |
|
Height |
300 |
|
Left |
120 |
|
Top |
600 |
|
Width |
1215 |
VB.Label |
Name |
LblAUID |
|
BorderStyle |
1 `Fixed Single |
|
Caption |
"Author ID" |
|
Height |
300 |
|
Left |
120 |
|
Top |
180 |
|
Width |
1215 |

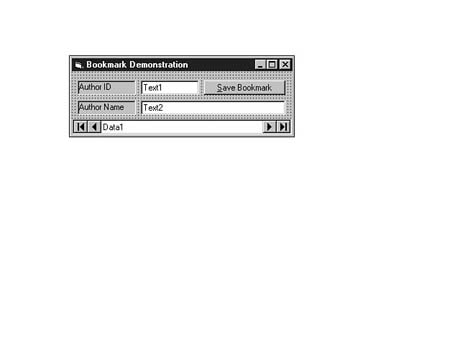

Refer to Figure 3.5 as a guide for sizing and locating the controls on the form.
Figure 3.5. Laying out
the guidemark Demonstration form.
When you have completed the form layout, add the following code behind the command button.
The code in Listing 3.9 is a toggle routine that saves the current place in the table by
reading (and storing) the guidemark, or restores the previous place in the table by reading
(and updating) the guidemark.
Listing 3.9.
Coding the cmdSaveguidemarks_Click event for guideMARKS.VBP.
Private Sub cmdSaveguidemark_Click()
`
` show how guidemarks work
`
Static blnFlag As Boolean
Static strguidemark As String
`
If blnFlag = False Then
`
` flip flag and set caption
blnFlag = True
cmdSaveguidemark.Caption = "&Restore guidemark"
`
` save guidemark for later
strguidemark = dtaguideMarks.Recordset.guidemark
MsgBox "guidemark Saved", vbInformation
Else
`
` flip flag and set caption
blnFlag = False
cmdSaveguidemark.Caption = "&Save guidemark"
`
` restore saved guidemark
dtaguideMarks.Recordset.guidemark = strguidemark
End If
`
End Sub |
TIP: Listing 3.9 uses two Static variables.
Static variables keep their value even after the procedure ends. Using Static variables in
your program is an excellent way to keep track of flag values even after procedures or
functions exit. The only other way to make sure that variables maintain their value after
exit from a routine is to place them in the declaration area of the form. The problem with
placing them at the form-level declaration is that they now can be altered by routines in
other procedures or functions on the same form. Declaring Static variables within the
procedures in which they are used follows good programming practice by limiting the scope
of the variable.
Save the form as guideMARKS.FRM
and the project as guideMARKS.VBP, and then run the program. The program opens the
guideS5.MDB file, creates a Dynaset-type Recordset of all the records in the
Authors data table, and presents the first record on the form. Note that the command
button caption says Save guidemark. Click the command button to create a guidemark that
points to this record of the collection. The caption changes to Restore guidemark. Now use
the arrow buttons on the data control to move to another record on the form. Click the
command button. You see that the record pointer has been returned to the first record in
the collection. This is because the Recordset guidemark property was reset to the value you
stored earlier. Dynasets and ODBC If you are accessing data from an ODBC (Open Database
Connectivity) data source, the only Visual Basic data object you can use to update the
underlying data table is a Dynaset-type Recordset. You learn more about ODBC connected
databases on Day 19, "ODBC Data Access Via the ODBC API."
Limitations
of the Dynaset-Type Recordset Data Object
Although the Dynaset is an excellent data object, it
has a few drawbacks that must be considered. Chief among these is that Dynasets do not
allow you to specify an existing index, and you cannot use the Visual Basic Seek
method to quickly locate a single record in the Dynaset. Also, errors can occur when
displaying records in a Dynaset if the records in the underlying data table have been
altered or deleted by another user. Dynaset Access and Seek Limitations Dynasets cannot
make use of Index objects that exist in a database because the Index is built to control
the entire data table and not just a subset of the data. Because Dynasets could be subsets
of the data table, the Index is useless. Also, because you cannot specify an Index object
for a Dynaset, you cannot use the Visual Basic Seek method on a Dynaset.
These are only minor limitations. If you have
defined an Index in the underlying table with the Primary flag turned on, the Visual Basic
data engine uses the primary key index when creating the Dynaset. This usually puts the
Dynaset in optimal order. Even though you cannot use the Seek method on a
Dynaset, you can use the FindFirst, FindNext, FindPrevious, and
FindLast methods. Even though they are not true index searches, they are fast
enough for operations on small- to medium-sized Dynasets. You learn more about Seek,
Find, and Move in Day 10, "Creating Database Programs with Visual
Basic Code." Dynamic Membership-Related Errors If your program opens a database and
creates a Dynaset from an underlying table while another user has also opened the same
database and created a Dynaset based on the same underlying data table, it is possible
that both users will attempt to edit the same data record. If both users edit the same
record and both attempt to save the record back to the underlying table, the second person
who attempts to save the record receives a Visual Basic error.
When the second person tries to save
the record, Visual Basic discovers that the original record in the underlying data table
has been altered. In order to maintain database integrity, Visual Basic does not allow the
second person to update the table.
When to Use
the Dynaset-Type Recordset Data Object
The Dynaset object should be used in most database
programs you write. In most cases, the Visual Basic Dynaset data object is the most
effective data access object to use. It offers you a way to create a dynamic, updatable
subset of data records in one or more data tables. The Dynaset object is the default
object created by the bound data control and is the only updatable data object you can use
to access ODBC data sources.
The Dynaset is not a good data object
to use when you need to do a great deal of record-oriented processing on large datasets,
such as index look-ups on large transaction files. If you have a Visual Basic program that
uses Dynasets and is showing slow database performance, look for places where you can
limit the size of Dynasets by narrowing the selection criteria.
The
Table-Type Recordset Data Object
The Visual Basic Table-type Recordset data object is
the data object that gives you access to the physical data table, sometimes referred to as
the base table. You can use the Table object to directly open the table defined by Data
Manager (or some other database definition tool). The chief advantage of using the Table
object is that you can specify search indexes and use the Visual Basic Seek
method. Like Dynasets, Tables take a limited amount of local workstation memory.
Table-type Recordset data objects also give you
instant information on the state of the data table. This is important in a multiuser
environment. As soon as a user adds or deletes a record from the table, all other users
who have the data table open as a Visual Basic Table object also see the changes.
Visual Basic Table objects have their drawbacks,
too. You cannot use a Select statement to initialize a Table object, and you cannot
combine data tables to create unique views of the database when you create Table objects.
You cannot use guidemarks, create
Filters, or sort the table. Furthermore, you cannot use the Table data object to access
ODBC data sources. Only Dynasets and Snapshots can be used with ODBC data sources.
Strengths of
the Table-type Recordset Data Object
The real strength of Table objects is that you can
specify Index objects to use when searching for specific records in the table. Table
objects also use limited workstation memory and offer instant updates whenever that data
in the table changes. Data Pointers and Instant Membership Notification Like Dynasets,
Table objects use limited workstation memory because Visual Basic caches pointers to the
actual records at the workstation instead of loading all the records into workstation
memory. This gives your programs the fastest access speed of all the data objects when you
are searching for a single record.
Unlike Dynasets and Snapshots, Table objects are not
subsets of the data table. They contain all the records in the table at all times. As soon
as a new record is added to the data table, the record is available to the Table object.
Also, as soon as a user deletes a record from the table, the Table object is updated to
reflect the deletion. Table-Type Recordset Objects, Indexes, and the Seek Method The
Visual Basic Table-type Recordset data object enables you to specify an index to apply to
the data table. You can use indexes to order the data table for displays and reports and
to speed searches using the Seek method.
The following project (TBSEEK.VBP)
demonstrates the use of Visual Basic Table-type Recordset objects, indexes, and the Seek
method. It opens the Titles table of the guideS5.MDB database and gives you the
ability to select one of three indexes. When the index is selected, the program loads the
records from the table into a list box. When you click the Search button, you are prompted
to enter a search value to use in the Seek method on the table.
Use the information in Table 4.2 to build a new
Standard EXE project that demonstrates the use of Visual Basic Table objects, indexes, and
the Seek method.
Table 3.2. Controls for the
TBSEEK.VBP project.
Control |
Property |
Setting |
VB.Form |
Name |
frmTbSeek |
|
Caption |
"Table Index and Seek
Demonstration" |
|
ClientHeight |
2895 |
|
ClientLeft |
60 |
|
ClientTop |
345 |
|
ClientWidth |
6540 |
|
StartUpPosition |
3 `Windows Default |
VB.CommandButton |
Name |
cmdExit |
|
Caption |
"E&xit" |
|
Height |
300 |
|
Left |
5220 |
|
Top |
2520 |
|
Width |
1200 |
VB.CommandButton |
Name |
cmdSeek |
|
Caption |
"&Seek" |
|
Height |
300 |
|
Left |
3900 |
|
Top |
2520 |
|
Width |
1200 |
VB.CommandButton |
Name |
cmdPublisher |
|
Caption |
"&Publisher" |
|
Height |
300 |
|
Left |
2640 |
|
Top |
2520 |
|
Width |
1200 |
VB.CommandButton |
Name |
CmdISBN |
|
Caption |
"&ISBN" |
|
Height |
300 |
|
Left |
1380 |
|
Top |
2520 |
|
Width |
1200 |
VB.CommandButton |
Name |
CmdTitle |
|
Caption |
"&Title" |
|
Height |
300 |
|
Left |
120 |
|
Top |
2520 |
|
Width |
1200 |
VB.ListBox |
Name |
LstRecordset |
|
Height |
2040 |
|
Left |
120 |
|
Top |
360 |
|
Width |
6255 |
VB.Label |
Name |
LblIndex |
|
BorderStyle |
1 `Fixed Single |
|
Height |
255 |
|
Left |
120 |
|
Top |
60 |
|
Width |
6255 |
Refer to Figure 3.6 as a guide for placement and positioning of the controls listed in
Table 3.2.

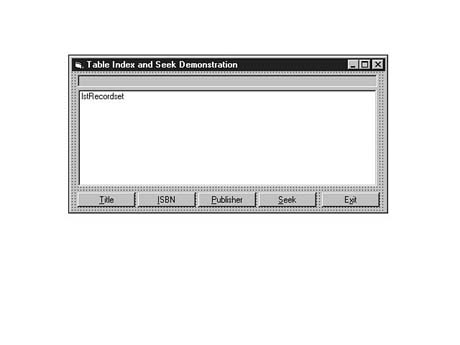

Figure 3.6. Laying out
the TbSeek form.
NOTE: Because you again create data objects
in Visual Basic code in this exercise, you need to load the Microsoft DAO 3.5 Object
Library for this project.
After you have placed the controls on
the form and sized them, you need to place the code from Listing 3.10 in the declaration
section of the form. This code declares several variables that you use throughout the
form.
Listing
3.10. Declaration code for the TBSEEK.VBP project.
Option Explicit
`
` form-level variables
`
Dim db As Database
Dim rs As Recordset
`
Dim strDBName As String
Dim strRSName As String
Dim strIndex As String
Dim strField As String
Place the code from Listing 3.11 in the Form_Load event of the form. This code
opens the guideS.MDB database and opens the Titles table.
Listing
3.11. Coding the Form_Load routine of TBSEEK.VBP.
Private Sub Form_Load()
`
` set vars
strDBName = App.Path & "\..\..\Data\guides5.mdb"
strRSName = "Titles"
`
` open database and table
Set db = DBEngine.OpenDatabase(strDBName)
Set rs = db.OpenRecordset(strRSName, dbOpenTable)
`
End Sub
Place the procedure shown in Listing 3.12 in the declaration section. This is the
procedure that sets the table index and loads the list box in the proper order.
Listing
3.12. Coding the LoadList routine of TBSEEK.VBP.
Public Sub LoadList()
`
` load data collection into list box
`
Dim strLine As String
lstRecordset.Clear
`
rs.Index = strIndex
rs.MoveFirst
`
On Error Resume Next ` in case we get null fields
`
Do While Not rs.EOF
strLine = rs.Fields("Title")
strLine = strLine & " | " & CStr(rs.Fields("YearPub"))
strLine = strLine & " | " & CStr(rs.Fields("ISBN"))
strLine = strLine & " | " & CStr(rs.Fields("PubID"))
lstRecordset.AddItem strLine
rs.MoveNext
Loop
`
lblIndex.Caption = "Titles Table - Indexed by [" & strField &
"]"
`
End Sub |
The LoadList procedure is an example of a way to load a Visual Basic list box
with data from a table. The routine first clears out the list box. Then the Index property
of the table object is set (based on the user's input) and moves to the first record in
the table.
Now the fun starts. The Do While..Loop
construct reads each record in the table and creates a single line of text (strLine)
that contains each of the fields separated by a single space. Notice that you need to use
the CStr() function to convert the numeric fields in the data table (YearPub,
ISBN, and Pub_ID) into string values before you can add them to strLine.
After the line is built, the strLine is added to the list box using the lstRecordset.AddNew
method. After the line is added to the list box, the record pointer is advanced using the rs.MoveNext
method. This goes on until there are no more records in the table.
The following three code segments go behind the
appropriate command button to set the indexes. They set values for selecting the index,
setting the display, and calling the routine to load the list box.
Place this code in the cmdTitle_Click
event:
Private Sub cmdTitle_Click()
`
` set for Title index
`
strIndex = "Title"
strField = "Title"
LoadList
`
End Sub
Place this code in the cmdISBN_Click event:
Private Sub cmdISBN_Click()
`
` set for ISBN index
`
strIndex = "PrimaryKey"
strField = "ISBN"
LoadList
`
End Sub
Place this code in the cmdPublisher_Click
event:
Private Sub cmdPublisher_Click()
`
` set for PubID index
`
strIndex = "PubID"
strField = "PubID"
LoadList
`
End Sub
The Seek routine shown in
Listing 3.13 calls an input box to prompt the user for a search value, performs the seek,
and reports the results of the search. The routine first checks to see whether the user
has filled the list box by selecting an index. If the list box contains data, the routine
calls the Visual Basic InputBox function to get user input, and then invokes the Seek
method of the table object. If the record is not found, you see a Seek Failed
message. If you entered a record that is on file, you see a Record Found message.
Listing
3.13. Coding the Seek routine for TBSEEK.VBP.
Private Sub cmdSeek_Click()
`
` perform table seek
`
Dim strSeek As String
`
If lstRecordset.ListCount = 0 Then
MsgBox "Select an Index First!", vbExclamation, "Missing Index"
Else
strSeek = InputBox("Enter a Seek value for " & strField)
rs.Seek "=", strSeek
If rs.NoMatch = True Then
MsgBox strSeek & " not in table", vbCritical, "Seek Failed"
Else
MsgBox rs.Fields("Title"), vbInformation, "Record Found"
End If
End If
`
End Sub |
Of course, every project should have an Exit button. Enter the following line for the Exit
button:
Private Sub cmdExit_Click()
`
` end program
`
rs.Close
db.Close
Set rs = Nothing
Set db = Nothing
Unload Me
`
End Sub
When you have completed the coding,
save the form as TBSEEK.FRM and the project as TBSEEK.VBP, and then run
the program. Click the Title, ISBN, or Publisher buttons to set the index and load the
list box. Note that each time you select a different button, the list is loaded in a
different order. After the list is loaded, click the Seek button to perform an indexed
search on the data table. If you enter a value that is in the index, the program reports
the title of the guide in a message box; otherwise, you see an error message. See Figure
3.7 for an example.

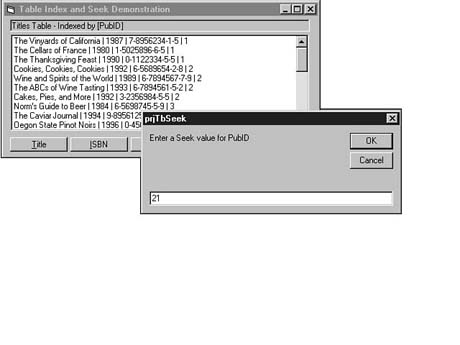

Figure 3.7. Testing the
TbSeek Demonstration Project.
Limitations of the Table-Type Recordset Data Object
Even though the Visual Basic Table-type Recordset
object provides the fastest search speed of any of the data objects, it also has certain
drawbacks. You cannot sort a table; you can't use the Table object when accessing ODBC
data sources; and you can't use the Visual Basic data control to access a Table object.
Tables Cannot Use guidemarks, Sorts, or Filters Unlike Dynasets and Snapshots, Visual Basic
Table objects cannot be sorted, filtered, or have guidemarks set. Instead of sorting the
data, you can use Index objects to establish the order of the data in the table. If you
need to filter the table (usually because it is a large table), you need to create a
Dynaset or Snapshot that contains a subset of the data in the table.
Table objects can't use guidemarks, so you can't mark
your place in a table, move around, and then return to the location using Visual Basic
guidemarks. You can, however, save the table index value instead. The table must have an
index declared, and you must know the fields used in the declared index. You can get this
information from the Design form of Data Manager, or you can get it at runtime by reading
the Index.Name and Index.Fields properties of the Table object. Refer to the section on
the Database data object for an example of how to read the Index.Name and Index.Fields
properties of a data table. ODBC Data Source Limitations If you plan to do any work with
ODBC data sources, you have to forget using the Visual Basic Table object. It does not
matter whether the ODBC source is a SQL Server data source or a spreadsheet on your local
workstation. You cannot define a Table object to access the data. You must use a Dynaset
or Snapshot object for ODBC data requests.
The reason for this limitation is
that the ODBC driver gives Visual Basic access to virtually any type of data. There is no
requirement that the data source comply with the Visual Basic data engine data table
format. Because the Table object is designed specifically to provide direct access to
Visual Basic data tables, it can only be used to access a data table that exists as data
table in a Microsoft Access database.
When to Use
the Table-Type Recordset Data Object
The Visual Basic Table-type Recordset object is the
best choice when you need to provide speedy searches of large data tables. As long as you
do not need to access ODBC data sources, and you do not need to get a set of data for
processing, the Table object is an excellent choice.
If, however, you need to process sets
of data instead of single records, the Table object does not work as easily or as quickly
as a Dynaset or Snapshot object.
The
Snapshot-Type Recordset Data Object
Visual Basic Snapshot-type Recordset objects are
almost identical to Dynaset-type Recordsets in behavior and properties. However, there are
two major differences between Snapshot objects and Dynaset objects. These two differences
are the most important aspects of Snapshots.
- Snapshots are stored entirely in workstation memory.
- Snapshots are read-only and nonupdatable objects.
Instead of reviewing strengths and limitations of
the Snapshot data object, let's look at these two properties of Snapshots in depth.
Snapshot-Type Recordset Storage You need to consider several things when using Snapshot
data objects. For example, unlike Visual Basic Dynasets, Snapshot objects are stored
entirely at the workstation. If you create a Snapshot that contains 500 data records, all
500 records are sent from the data table directly to your workstation and loaded into RAM
memory. If the workstation does not have enough RAM available, the records are stored in a
temporary file on a local disk drive.
Because all the requested records are loaded on the
local machine, initial requests for data can take longer with Snapshots than with
Dynasets. However, when the data records are retrieved and stored locally, subsequent
access to records within the Snapshot object is faster than with the Dynaset object. Also,
because all records must be stored locally, you must be careful not to request too large a
dataset; you might quickly run out of local RAM or disk space.
Snapshots are static views of the underlying data
tables. If you request a set of data records in a Snapshot object, and then someone
deletes several records from the underlying data table, the Snapshot dataset does not
reflect the changes in the underlying table. The only way you can learn about the changes
in the underlying data tables is to create a new Snapshot by making a new request.
Snapshot-Type Recordsets Are Read-Only Data Objects Visual Basic Snapshots are read-only
data objects. You cannot use Snapshots to update data tables. You can only use them to
view data. This is because Snapshots are actually a copy of the data records created at
your local workstation.
The project in Listing 3.14 illustrates the static
aspect of Snapshot data objects compared to the dynamic aspect of Dynaset and Table data
objects. Start a new Standard EXE project. There are no controls in this project, so be
sure to add the Microsoft DAO 3.5 Object Library to access the data objects.
The entire source code is listed.
Enter it into a single form and save it as SNAPSHOTS.FRM and SNAPSHOTS.VBP.
Listing
3.14. Comparing Snapshot-type and Dynaset-type Recordsets.
Option Explicit
`
` form level variables
`
Dim db As Database
Dim rsDynaset As Recordset
Dim rsSnapshot As Recordset
Dim rsTable As Recordset
`
Dim strDBName As String
Dim strRSName As String
Dim varRecords As Variant
Dim intReturned As Integer
Dim intColumns As Integer
Private Sub Form_Activate()
`
` main control routine
`
strDBName = App.Path & "\..\..\Data\guides5.mdb"
strRSName = "Titles"
OpenFiles
`
` show title
Me.Cls
Me.Print "Comparing Recordset Types (Dynaset, Snapshot, & Table)"
Me.Print
`
` show first compare
Me.Print ">First Pass"
CountRecs rsDynaset, "Dynaset"
CountRecs rsSnapshot, "Snapshot"
CountRecs rsTable, "Table"
Me.Print
`
` save rec, delete it, count
SaveDynasetRec
DeleteDynasetRec
Me.Print ">After Dynaset Delete"
CountRecs rsDynaset, "Dynaset"
CountRecs rsSnapshot, "Snapshot"
CountRecs rsTable, "Table"
Me.Print
`
` restore rec and count
RestoreDynasetRec
Me.Print ">After Dynaset Restore"
CountRecs rsDynaset, "Dynaset"
CountRecs rsSnapshot, "Snapshot"
CountRecs rsTable, "Table"
Me.Print
`
End Sub
Public Sub OpenFiles()
`
` open database and
` populate objects
`
Set db = DBEngine.OpenDatabase(strDBName)
`
With db
Set rsDynaset = .OpenRecordset(strRSName, dbOpenDynaset)
Set rsSnapshot = .OpenRecordset(strRSName, dbOpenSnapshot)
Set rsTable = .OpenRecordset(strRSName, dbOpenTable)
End With
`
End Sub
Public Sub CountRecs(rsTemp As Recordset, strType As String)
`
` count records in the object
`
Dim intCount As Integer
`
With rsTemp
.MoveFirst
.MoveLast
intCount = .RecordCount
End With
`
Me.Print vbTab, "Total for " & strType & ":"; intCount
`
End Sub
Public Sub SaveDynasetRec()
`
` save a single record
`
With rsDynaset
.MoveFirst
varRecords = .GetRows(1)
End With
`
End Sub
Public Sub DeleteDynasetRec()
`
` remove first record in the collection
`
With rsDynaset
.MoveFirst
.Delete
End With
`
End Sub
Public Sub RestoreDynasetRec()
`
` add saved rec back in
`
Dim intLoop As Integer
`
With rsDynaset
.AddNew
For intLoop = 0 To UBound(varRecords, 1)
.Fields(intLoop).Value = varRecords(intLoop, 0)
Next
.Update
End With
`
End Sub |
Although there is not a lot of code in this example, there are a few things worth pointing
out. First, you see extensive use of the With..End With construct in Listing
3.14. This construct was introduced in Visual Basic 4.0 and is very useful when working
with Visual Basic objects. Using the With..End With construct is faster than
naming the same objects several times in code.
Also, notice the use of the GetRows method
of the Recordset. This method fills a variant data variable with the contents of
one or more records from the Recordset. This is a very efficient way to read
several records into memory without using the slower For..Next loops.
When you run the SNAPSHOTS.VBP
program, you see three record count reports. The first report occurs right after the data
objects are created. The second count report occurs after a record has been removed from
the Dynaset object. The last count report occurs after the record has been restored to the
Dynaset object. Note that both the Table and the Dynaset objects reflect the changes in
the data table, but the Snapshot does not (see Figure 3.8).
Figure 3.8. Comparing
Dynasets, Snapshots, and Tables.
When to Use the Snapshot Data Object
Visual Basic Snapshot-type Recordset objects work
best if you have a small set of data that you need to access frequently. For example, if
you have a list of valid input values for a particular field stored in a control table,
you can load these valid values into a Snapshot and refer to that dataset each time you
need to verify user input.
If the dataset is not too large, Snapshots are very
good for use in creating calculated reports or graphic displays. It is usually a good idea
to create a static dataset for use in calculating reports. This way, any changes in the
dataset that might occur in a multiuser environment from the time you start the report to
the time you end it will not confuse any calculations done by the report.
TIP: It's a good idea to keep your Snapshots
to less then 64KB in size. You can estimate the eventual size of your Snapshots by
calculating the number of bytes in an average data record and estimating the average
number of records you can expect in your Snapshot. You can refer to Day 2, "Creating
Databases," for information on the size of Visual Basic data types.
The Database
Data Objects
The Database object of a Visual Basic data control
allows you access to all the properties and methods associated with the database
underlying the data control. By using the related data objects, TableDefs, Fields, and
Indexes, you can get information about all the tables in the database, all the indexes in
the database, and all the fields in each table. Also, you can get additional information
about the field types and index parameters.
The Database data object is most useful when you are
developing generic database routines. Because the Database object gives you access to all
the field names and properties, you can use this information to write generic data table
display and update routines instead of having to write routines that have hard-coded field
names and data types. TableDefs objects are covered in more detail on Day 10,
"Creating Database Programs with Visual Basic Code". For now, though, let's
write a short routine that lists all the tables, fields, and indexes in the guideS5.MDB
database.
First, start a new Standard EXE project in Visual
Basic 5 and load the Microsoft Jet DAO 3.5 Object Library. Use the information in Table
3.3 to set the form property settings and place the data control on the form.
Table 3.3. The controls for the
04ABC1.MAK project.
Control |
Property |
Setting |
Form |
Caption |
Database Objects Demo |
|
WindowState |
Maximize |
DataControl |
Alignment |
Align Bottom |
|
DatabaseName |
"guideS5.MDB" |
|
RecordSource |
Authors |
Be sure to place the data control at the very bottom of the form. It is only there to give
you access to the various database properties that you print on the form itself. Enter the
program code in Listing 3.15 in the Form_Activate event.
Listing
3.15. Listing Database objects.
Private Sub Form_Activate()
`
` show high-level database objects
`
Dim tb As TableDef
Dim fl As Field
Dim ix As Index
Data1.DatabaseName = App.Path & "\..\..\data\guides5.mdb"
Data1.Refresh
`
For Each tb In Data1.Database.TableDefs
Me.Print "Table Info:"
Print " "; tb.Name
For Each fl In tb.Fields
Print " -"; fl.Name
Next
MsgBox "Press OK to continue"
Me.Cls
Next
`
On Error Resume Next ` in case there's no index
`
For Each tb In Data1.Database.TableDefs
Me.Print "Index Info:"
Print " "; tb.Name
For Each ix In tb.Indexes
Print " -"; ix.Name;
Print "[";
Print ix.Fields;
Print "]"
Next
MsgBox "Press OK to continue"
Me.Cls
Next
`
End Sub |
After you enter the code, save the form as DATABASE.FRM and the project as DATABASE.VBP,
and then run the program. You see a list on the screen showing the table name, a list of
all the fields in the table, and a dialog box. Click the dialog box to continue to the
next table. After clicking OK through the table listing, you see a list of each index
defined for each table, which you can also click through one at a time. Your two screens
should look something like the one in Figure 3.9 for tables and the one in Figure 3.10 for
indexes.
Figure 3.9. List of
fields in the Publishers table in guideS5.MDB.
NOTE: As you click through the database
tables, you see several tables that start with "MSYS." These are system tables
used by the Microsoft Jet database engine and are not used for data storage or retrieval.
You should also notice that each Index object consists of a unique name and one or more
fields (displayed in brackets). You do not see a data table associated with the index
because the Microsoft Jet engine does not store that information in a manner you can
easily see (it's actually in one of those "MSYS" tables!).
Figure 3.10. List of
indexes for the Titles table in guideS5.MDB.
Summary
In today's lesson, you learned that there are three
main types of Visual Basic Recordset data objects:
- Table-type objects: These are used when you have a
large dataset and need to do frequent searches to locate a single record. You can use the
Visual Basic Seek method and use Visual Basic Indexes with the Table object.
- Dynaset-type objects: These are used in most cases
when you need read and write access to datasets. The Dynaset uses little workstation
memory and allows you to create virtual tables by combining fields from different tables
in the same database. The Dynaset is the only data object that allows you to read and
write to ODBC data sources.
- Snapshot-type objects: These are used when you need
fast read-only access to datasets. Snapshot objects are stored in workstation memory, so
they should be kept small. Snapshots are good for storing validation lists at the
workstation or for small reports.
You also learned about another data
object--the Database object. You can use the Database object to get a list of tables in
the database, a list of indexes associated with the tables, and a list of fields in each
of the tables.
Quiz
- 1. Are Visual Basic Database objects
dataset-oriented or record-oriented?
2. What is the most common Visual Basic data object?
3. Do Dynasets use a relatively large amount or small amount of workstation RAM? Why?
4. What are the weaknesses of using a Dynaset object?
5. What are the main advantages of using the Table data object?
6. Do you use the Refresh method with the Table data object?
7. Can you open a Table data object by setting the properties of a data control?
8. What is the difference between a Snapshot and a Dynaset data object?
9. Which data object do you use to extract table and field names from a database
definition?
Exercises
- 1. What type of Recordset data object would
you use--Dynaset, Table, or Snapshot--to create an attachment to an ODBC data source that
you would like to update periodically? Why?
Write the code to open this type of data object. Assume that the database name is C:\DATA\ACCTPAY.MDB,
with your desired table named Vendors.
2. Given the same data source as in Exercise 1, write the code to open a data
object to be used in the generation of a report. (Assume the RAM memory is adequate on the
machine running the program.)
3. Given the same data source as in Exercise 1, write the code that opens the data
object so that you can access the data often in a multiuser environment to search for
single records.
